(Scott Brand)
Model : 290927

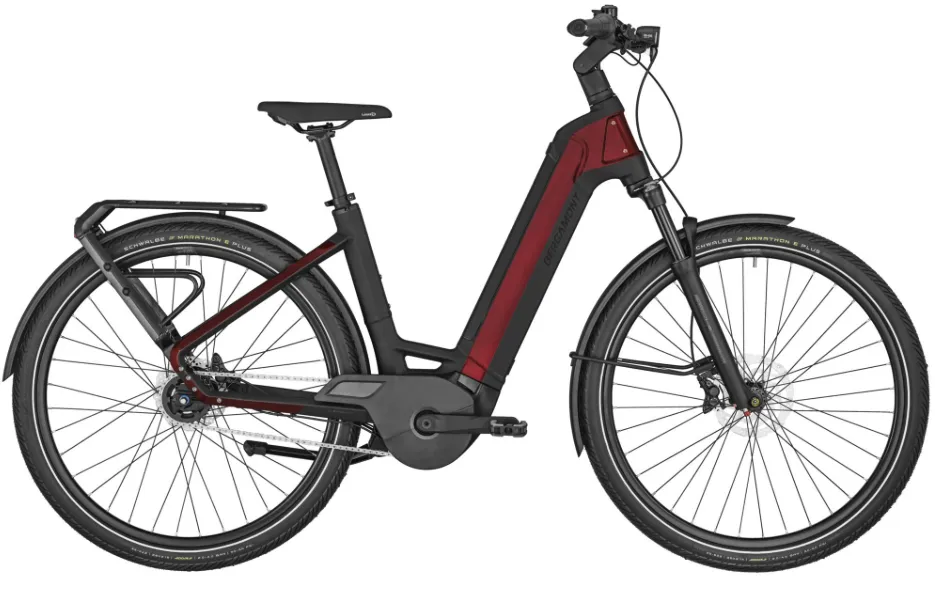

Pure modern urban style: Agile, dynamic low step-through bicycle with consistent design language, maximum integration, powerful Bosch drive technology and proven Shimano shifting technology. Maximum system weight: 160 kg
Frame28", lite AL-6061 tubing, PowerTube battery
ForkSuntour Mobie 25, RLR DS, 100 mm, 15x100 mm axle
Drive UnitBosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
BatteryBosch PowerTube, 36 V Li Ion, 625 Wh
DisplayBosch LED Remote with Kiox 300 display
ChargerBosch Standard Charger, 4A
ShiftersShimano Nexus, SL-C7000, 5-speed, revo-shifter
CranksetFSA CK-745, 38t
BB-SetBosch, Isis
ChainKMC Z1eHX Wide EPT
CassetteShimano CS-C7000, 27t
Brake LeversShimano BL-MT402, hydraulic disc brake
BrakesShimano BR-MT420, hydraulic disc brake, 4-piston
RotorFront: Shimano SM-RT10, 180 mmRear: Shimano SM-RT10, 160 mm
HandlebarBGM Pro, riserbar, backsweep: 15°, rise: 5 mm
H'stemBGM E-Bike, adjustable
SeatpostBGM Pro
SeatSelle Royal Lookin BGM Basic Athletic
HeadsetAcros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Hub (Front)Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Hub (Rear)Shimano Nexus, SG-C7000-5, freehub, centerlock, disc
SpokesSapim Leader
RimsRyde Rival 23, disc, eyelets
Front TireSchwalbe Marathon E-Plus, Smart Dual Guard, reflective stripe, 55-622Tube: Schwalbe AV19
Rear TireSchwalbe Marathon E-Plus, Smart Dual Guard, reflective stripe, 55-622Tube: Schwalbe AV19
LightsFront: B&M IQ-XS, 80 Lux, LEDRear: B&M Toplight Line brex, LED, with brake light
RackRacktime E-Ville carrier, Snapit 2.0 System
PedalsTrekking alloy
AccessoriesKickstand: Syncros
Approx weight in KG28,1
Colorshiny mirror red
FenderRacktime Alumee

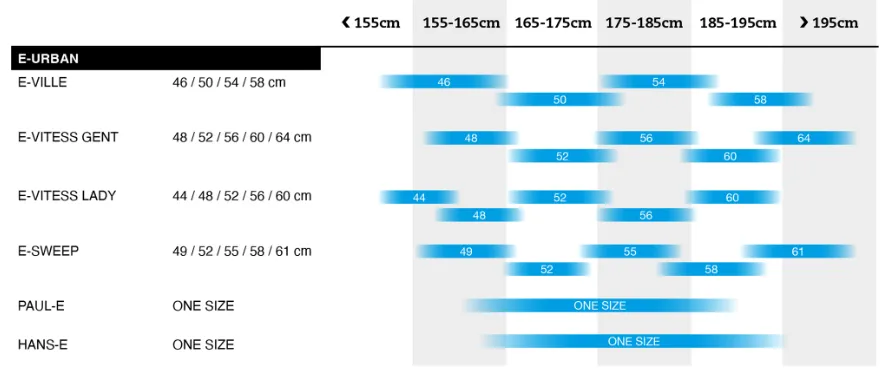

Frame size46/50/54/58 cm
GripsBGM Comfort, Ergo, double density, clamp version
Max. System Weight160,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
