Product Description

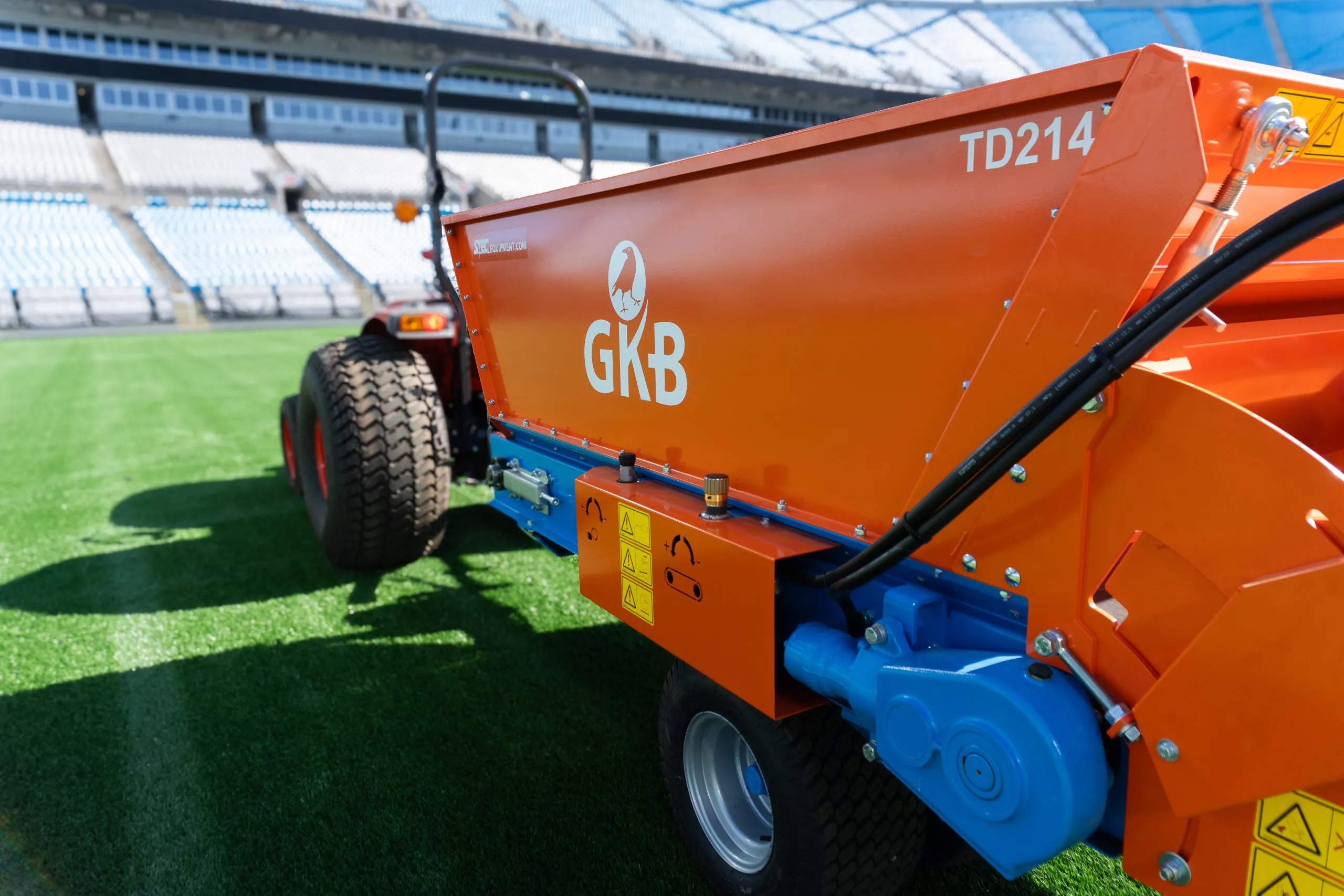

GKB Topdrop With Adjustable Hydraulic Spreading Brush | Model TD114- TD330 | Working Width 55''- 79'' | 25-50 HP | For Tractor
DESCRIPTION

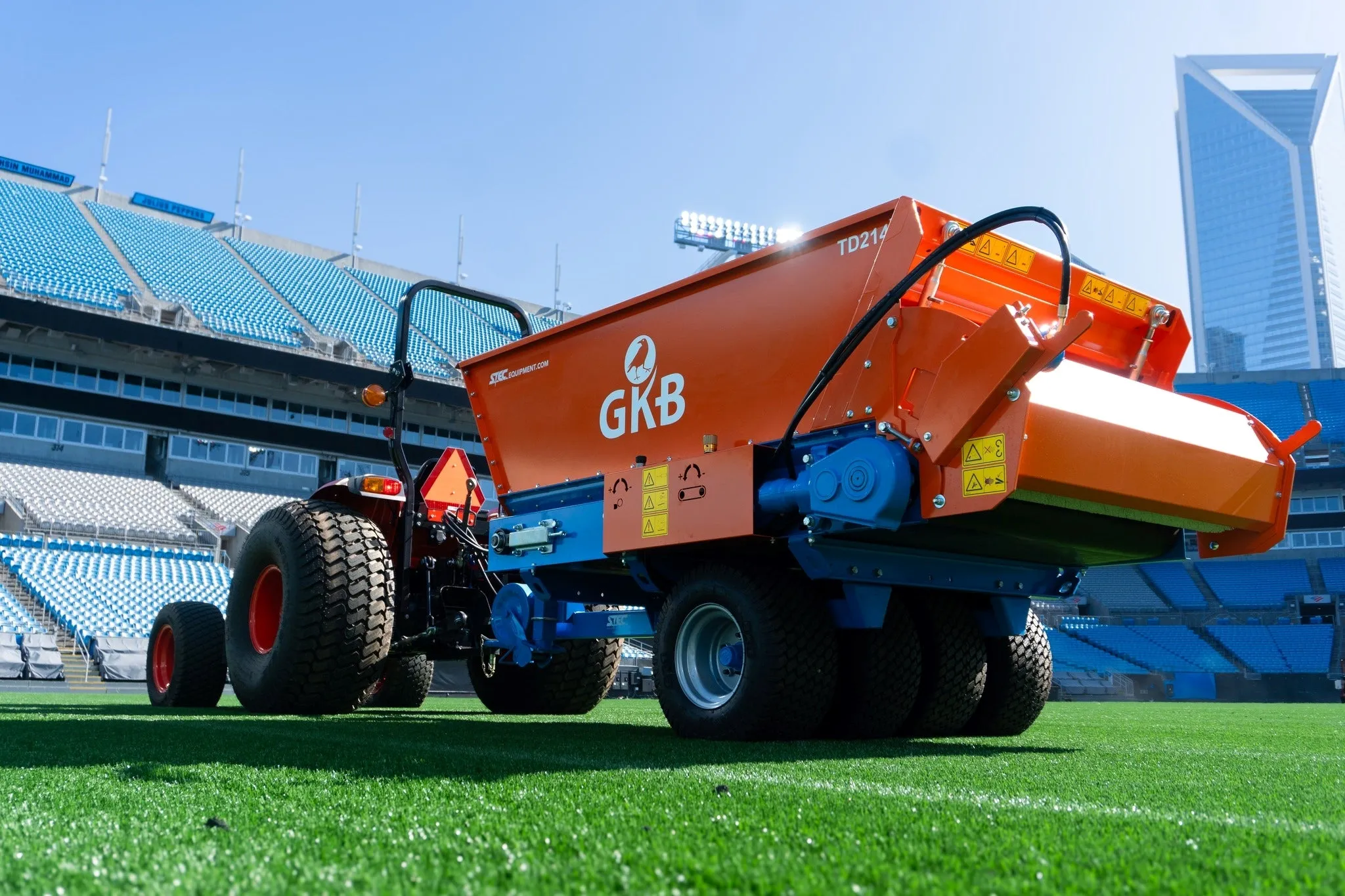

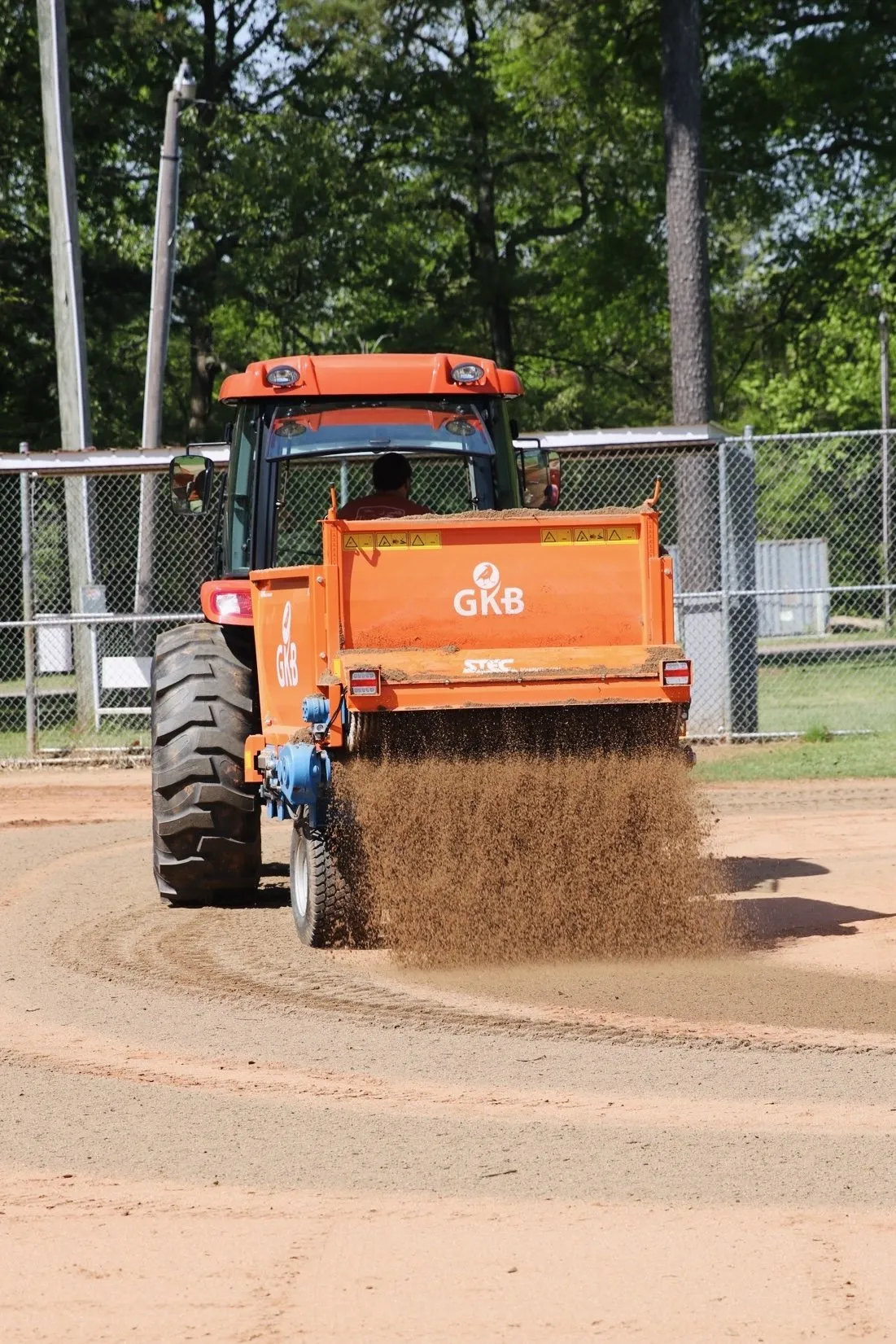

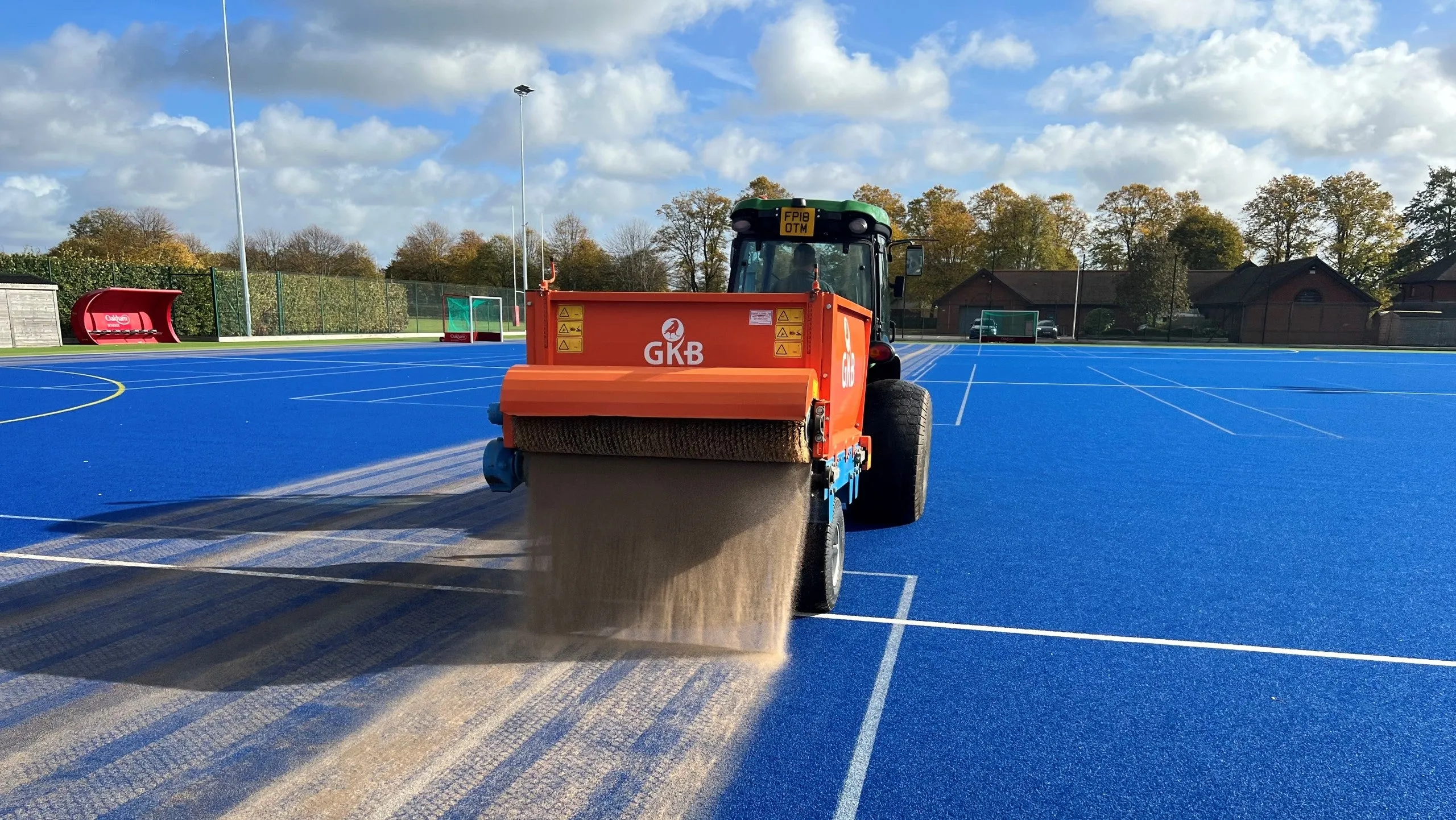

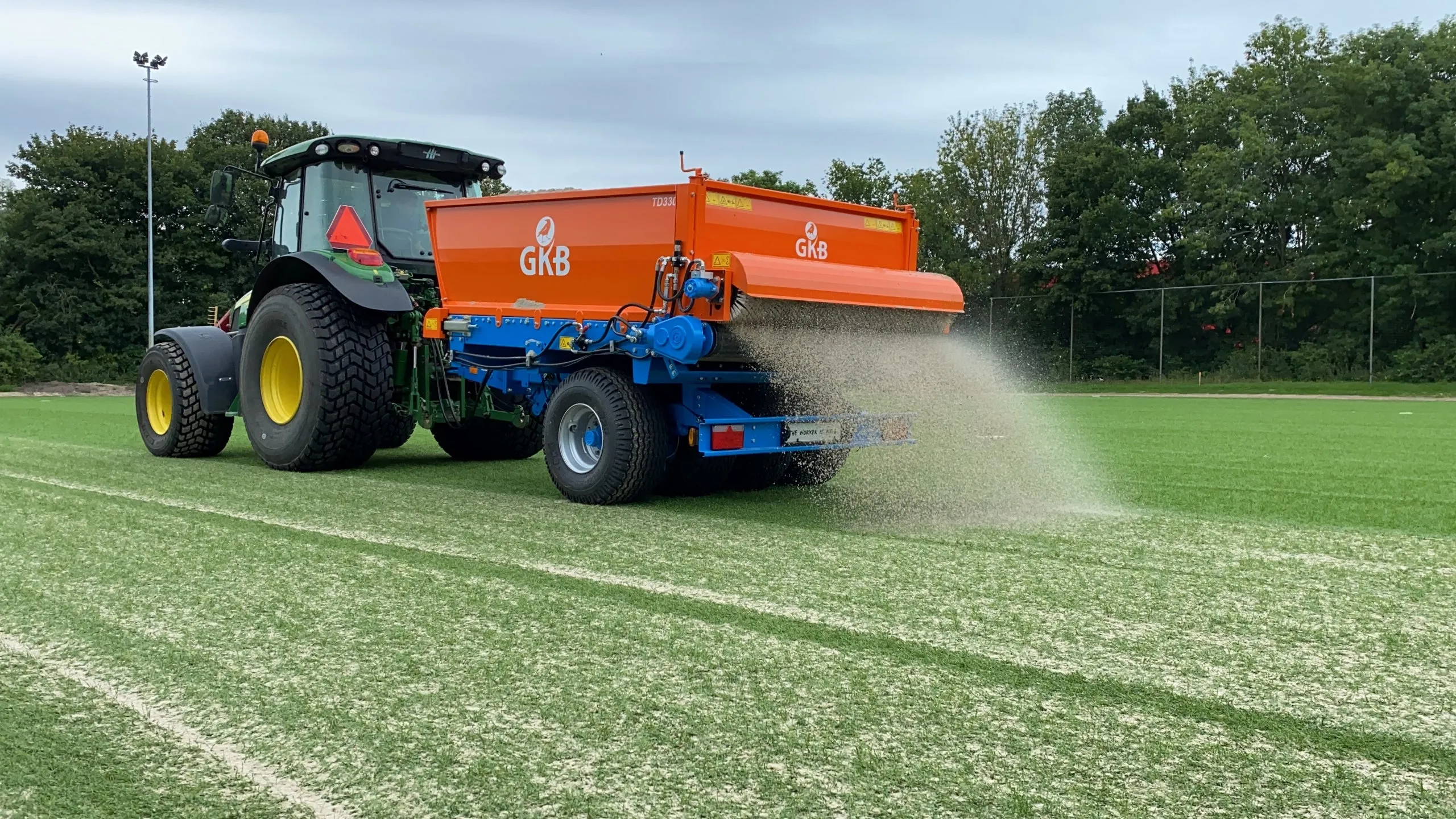

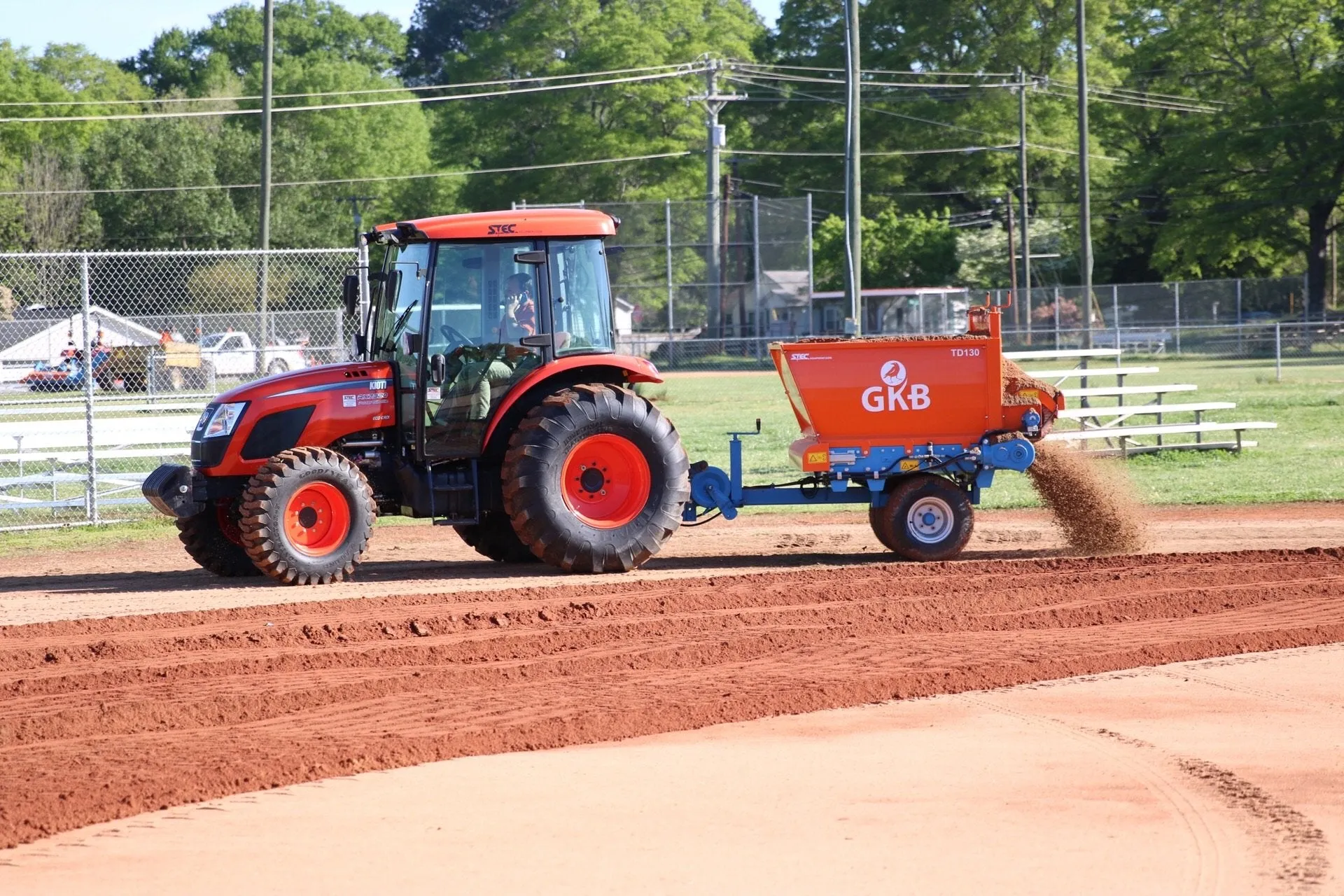

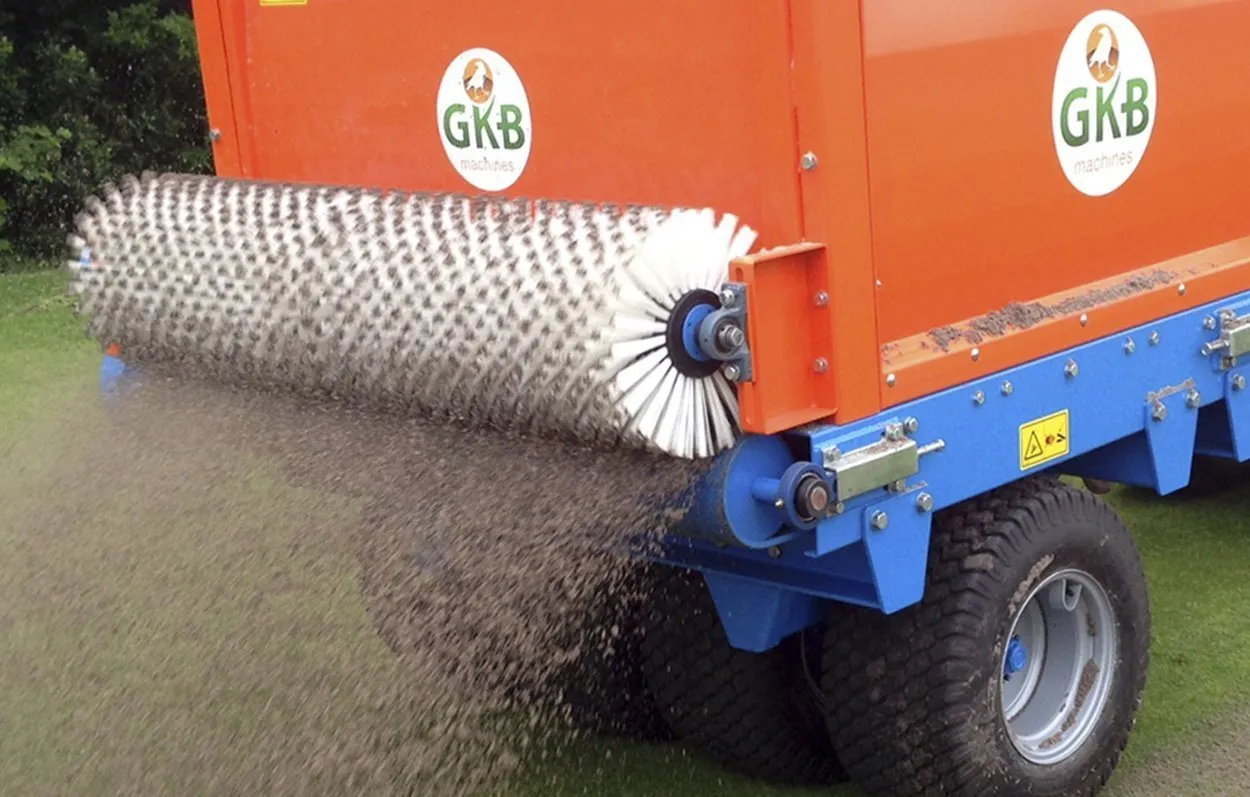

The Topdrop is a premium brush dresser, with which you can apply several materials accurately. By means of a conveyer belt, the sand is moved to the rear of the machine where a hydraulically driven, speed controlled rotary brush takes the material and evenly and uniformly applies it to the turf. If you need material in certain spots, you have complete control to do that.

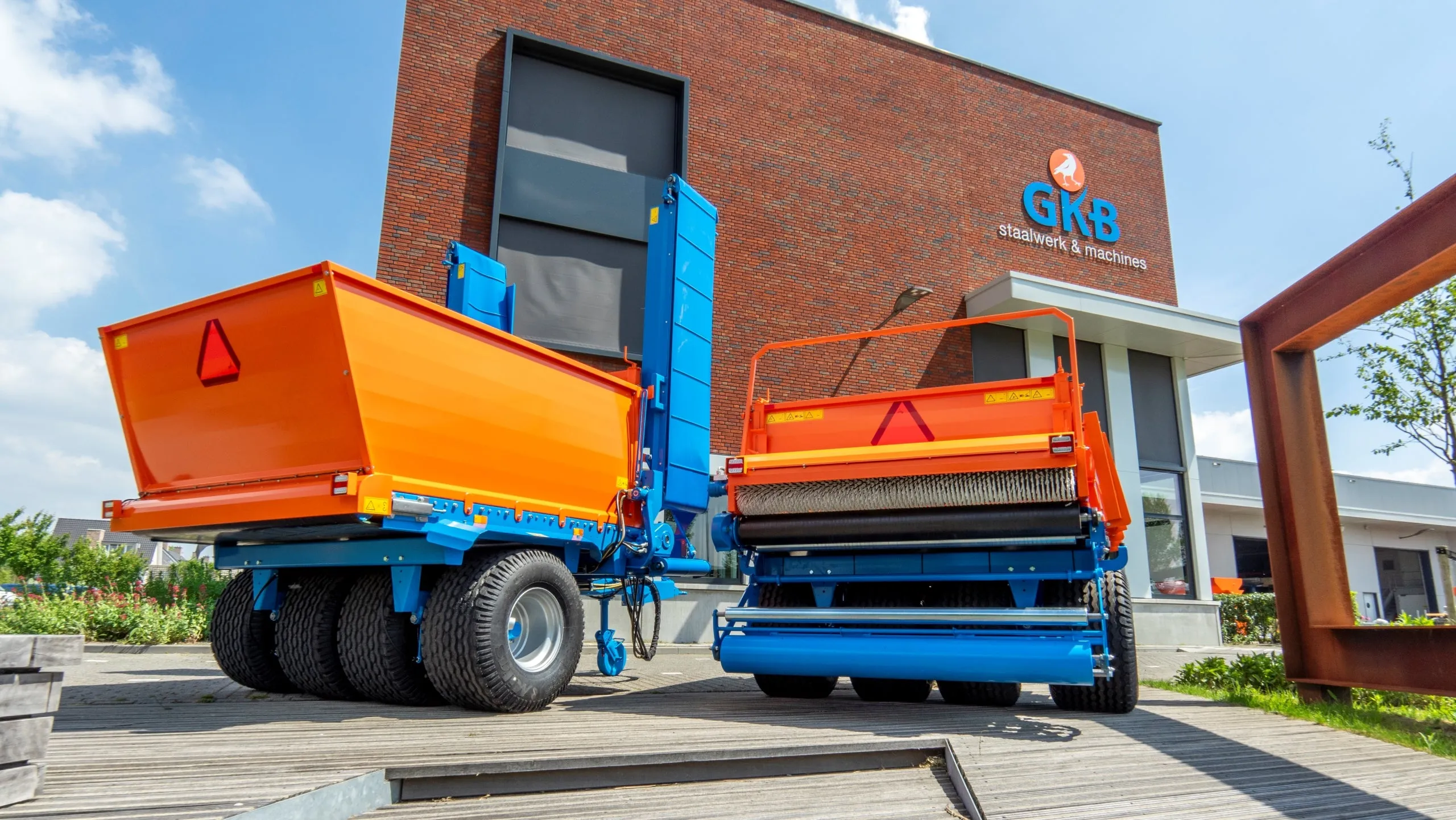

The Topdrop is available in three different sizes. Every design is provided with four pivoting balloon tires, in order to provide the perfect weight distribution on your sports pitch or golf course.
Key Features
- Versatile Material Application: Suitable for sand, gravel, and rubber.
- Adjustable Hopper Capacity: Varies by model to accommodate different material needs.
- Robust Design: Built for durability and consistent performance under various conditions.
Detailed Specifications
TD114 and TD214
| Specification | TD114 | TD214 |
|---|---|---|
| Working Width | 55" | 55" |
| Dimensions (L x W x H) | 114" x 63" x 63" | 157" x 63" x 63" |
| Weight (Without Material) | 1,708 lbs | 1,873 lbs |
| Hopper Capacity | 1.5 y³ | 2.5 y³ |
| Power Requirement | >25 hp | >30 hp |
| Linkage Type | Draw Bar | Draw Bar |
TD220 and TD330
| Specification | TD220 | TD330 |
|---|---|---|
| Working Width | 79" | 79" |
| Dimensions (L x W x H) | 118" x 65" x 63" | 157" x 90" x 63" |
| Weight (Without Material) | 1,985 lbs | 3,370 lbs |
| Hopper Capacity | 2.5 y³ | 3.6 y³ |
| Power Requirement | >30 hp | >50 hp |
| Linkage Type | Draw Bar | Draw Bar |
